Trubilt

Skid Steer 4 in 1 Bucket

Skid Steer 4 in 1 Bucket

Options
Size

The Trubilt XHD Grapple Bucket is designed for heavy-duty performance with two 2 1⁄2” x 8″ hydraulic cylinders and oversized, greasable pins. With an opening width of 38″ and 1⁄2” thick steel side plates, it offers durability and efficiency. It features a 3⁄4” thick x 6″ wide front cutting edge and a 5⁄8” thick x 6″ wide rear cutting edge, both heat-treated and bolt-on reversible. Options include a front bolt-on edge, teeth, and toothbar. The 1⁄4” thick reinforced steel floor plate and reinforced quick attach ensure stability. Equipped with Parker brand hoses, fittings, and couplers, this bucket is available in sizes from 60″ to 84″, with custom sizes also offered. A treaded step adds convenience.

View full details

Product Specifications

Measurements

  • Opening width: 38″
  • Sizes available: 60″, 66″, 72″, 78″, 84″ (custom sizes also available)

Material

  • 1⁄2” thick steel side plates
  • 1⁄4” thick reinforced steel floor plate

Features

  • Two 2 1⁄2” X 8″ hydraulic cylinders
  • Oversized, greasable pins
  • Front cutting edge: 3⁄4” thick x 6″ wide
  • Rear cutting edge (dozing edge): 5⁄8” thick x 6″ wide, heat-treated, bolt-on reversible double edge
  • Available with optional front bolt-on edge
  • Available with or without teeth
  • Available with or without toothbar (not available with bolt-on edge)
  • Reinforced quick attach
  • Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
  • Treaded step

Warranty

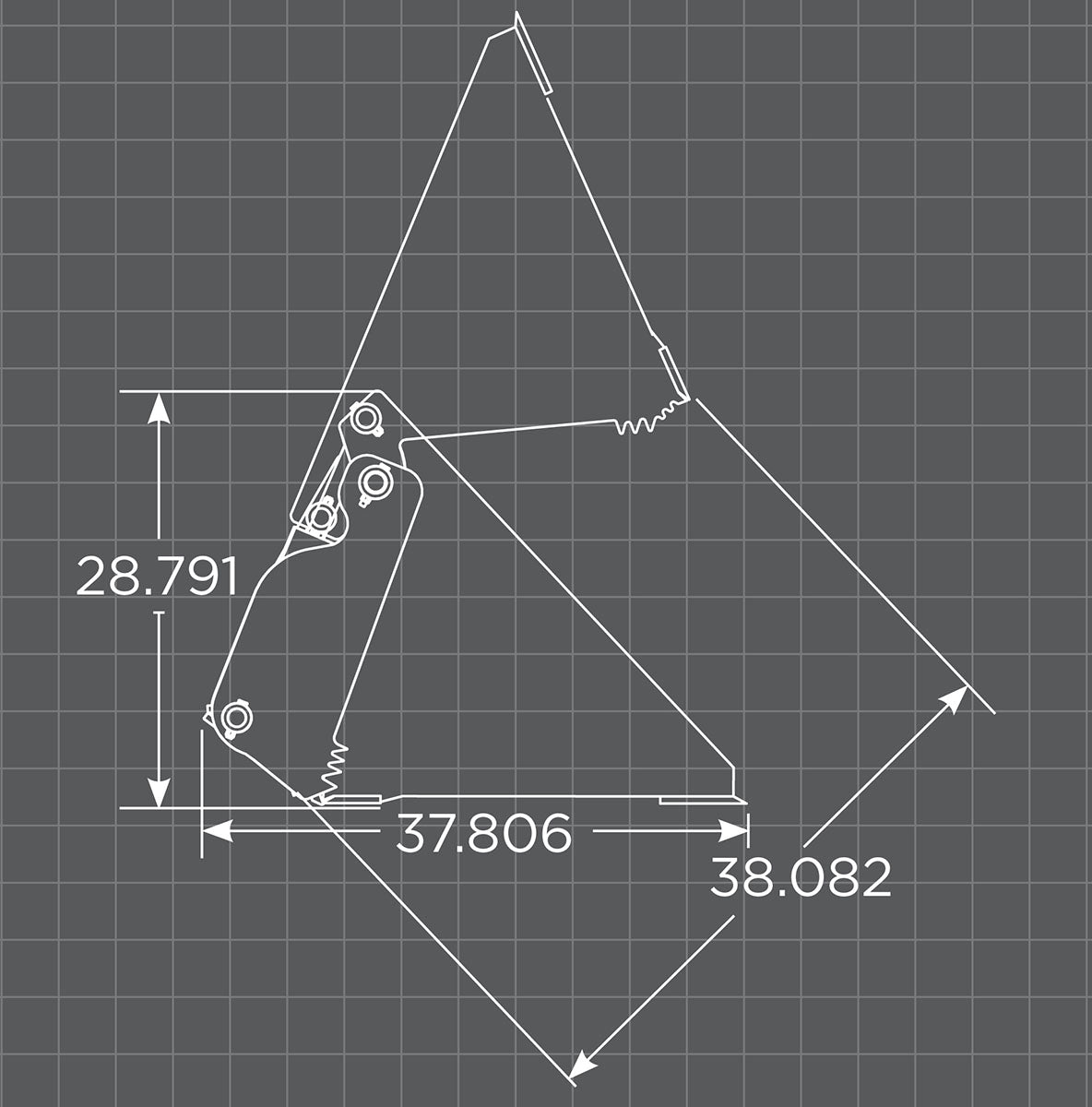

Dimensions
