Trubilt

Pallet Fork Frame

Pallet Fork Frame

Size

The Trubilt Pallet Fork Frame is built for durability and versatility, making it an essential tool for any heavy lifting task. Designed with a robust frame and high-strength steel, it is engineered to handle various pallet sizes and weights effortlessly. The adjustable tines ensure secure and efficient handling of materials, while the quick-attach mechanism allows for easy attachment to different machines. Ideal for construction, landscaping, and agricultural applications, this pallet fork frame enhances productivity and safety on the job site.

View full details

Collapsible content

Product Specifications

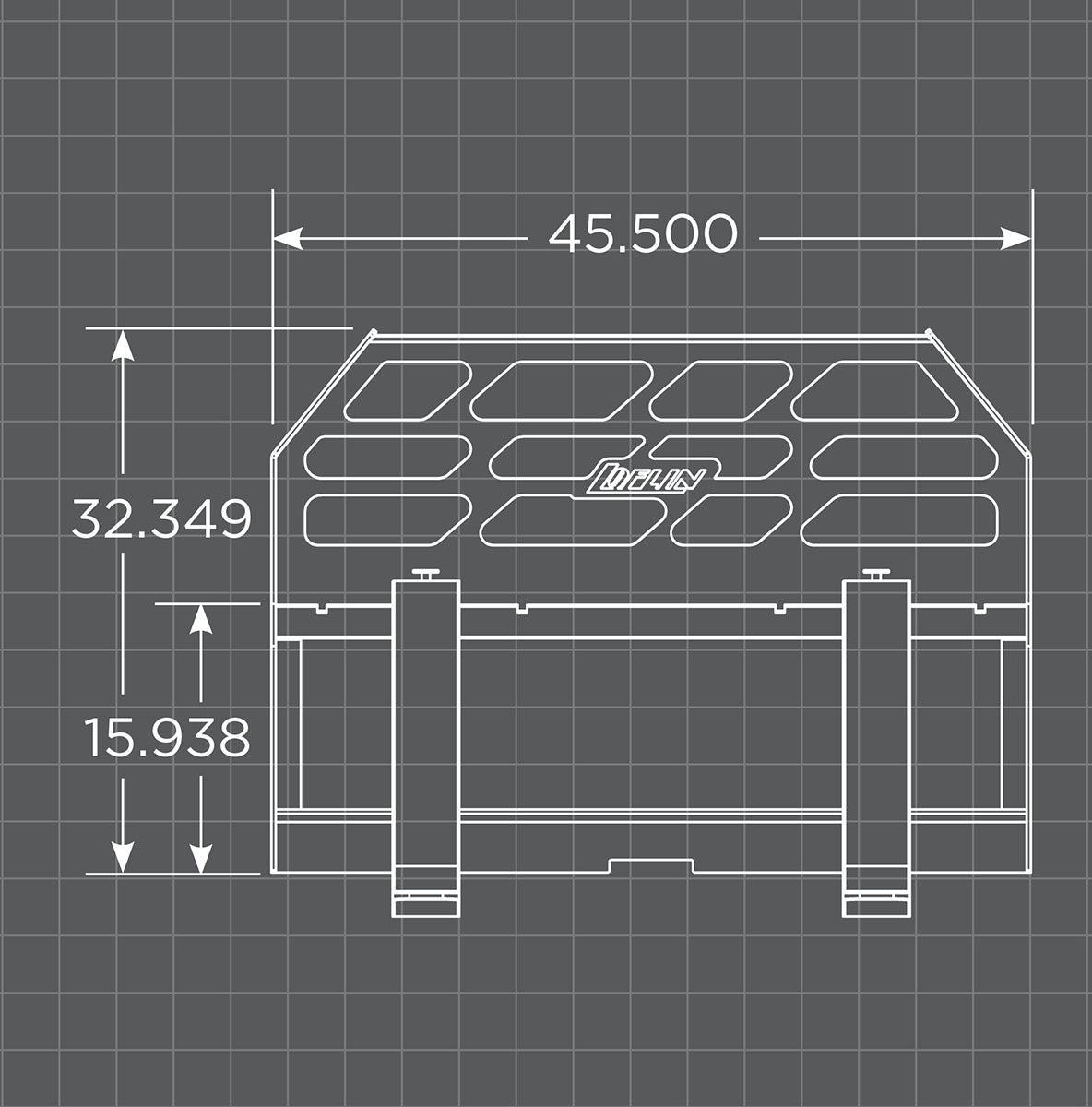

Measurements

  • Frame width: 45.5″
  • Frame height: 32.349″
  • Fork lengths available: 36″, 42", 48", 60" and 72″

Material

  • High-strength steel construction

Weight

  • Frame weight: 200 lbs

Features

  • CNC machined carriage bar with 3 locking locations
  • Thin frame design for greater lift capacity
  • Moves load center closer to the machine for more load stability and control
  • Available with optional steps

Warranty

Dimensions
