Standard Duty Root Grapple

Standard Duty Root Grapple

Size

This essential skid steer attachment is a game-changer for the tree industry and contractors alike. Available in various sizes and designs, it performs three jobs in one: raking debris, piling it for easy movement, and providing a backfill tool. Ideal for loading logs, brush, rocks, and more, it separates dirt from materials efficiently.

View full details

Product Specifications

Measurements

  • Overall Height: 31-in.
  • Overall Width: 50.5-in.
  • Overall Depth: 8-in.
  • Upper to Lower Rail: 16-in.
  • Main Spear Sleeve: Conus 2

Material

  • Finish: Powder-Coated Charcoal
  • Material: Steel

Weight

  • Weight Capacity: 4,000 lb.
  • Product Weight: 144 lb.

Features

  • Allows dirt to fall through
  • Independent grapple tines
  • 2″ X 10″ cylinders
  • 9,500 lbs of grappling force
  • 1⁄2” thick steel tines
  • Reinforced quick attach
  • Fully protected hoses
  • Covered hydraulic cylinders
  • Fully greasable hinge points
  • Oversized, greasable 1 1⁄4“ pins
  • Opening width: 34 1⁄2“
  • Avoids underground damage by sliding along the top of the ground
  • Equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
  • 81⁄2” to 9″ tine spacing and custom spacing available
  • Supports up to 75 horsepower

Warranty

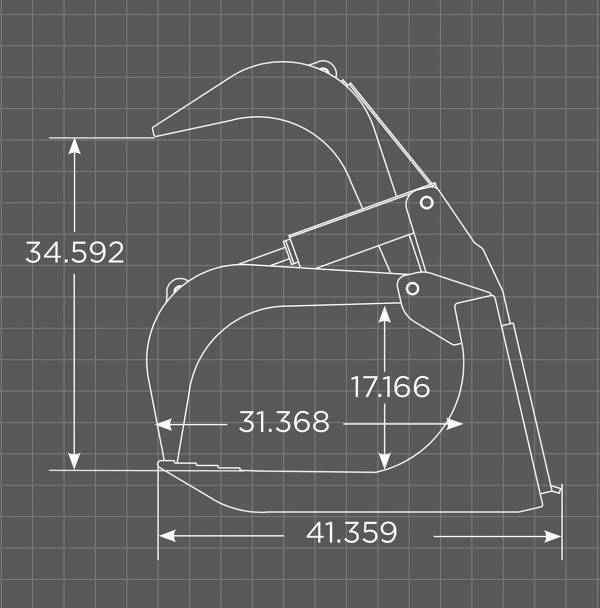

Dimensions
