Trubilt

Wood Splitter

Wood Splitter

The Wood Splitter boasts a powerful 35-ton splitting capacity, designed with a unique main beam constructed of round tubing to prevent twisting under pressure. With its 32 1⁄4” opening width and a heavy-duty 5” bore x 36” stroke hydraulic cylinder, this splitter offers robust performance. Equipped with oversized, greasable 1 3⁄4” pins and replaceable nylon guides to protect the beam, it is built for long-term durability. This model includes a 2-position quick attach, allowing operators to run the splitter either inverted from the cab or upright, optimizing efficiency. It comes with optional features like a 4-way wedge, table, and hand control, further enhancing its versatility. The inverted design allows a single operator to manage wood splitting, reducing labor time.

View full details

Collapsible content

Product Specifications

Product Specs:
Capacity: 35 tons

Opening Width: 32 1⁄4”

Main Beam: Round tubing design to prevent twisting

Hydraulic Cylinder: 5” bore x 36” stroke

Pins: Oversized, greasable 1 3⁄4” pins

Quick Attach: 2-position (run inverted from cab or upright)

Hydraulic Flow: 6-40 GPM

Optional Features: 4-way wedge, table, and hand control

Special Features: Replaceable nylon guides to prevent beam galling

Hoses and Fittings: Equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)


The inverted design ensures one-person operation, improving productivity by reducing labor time while maintaining exceptional splitting power.

Warranty

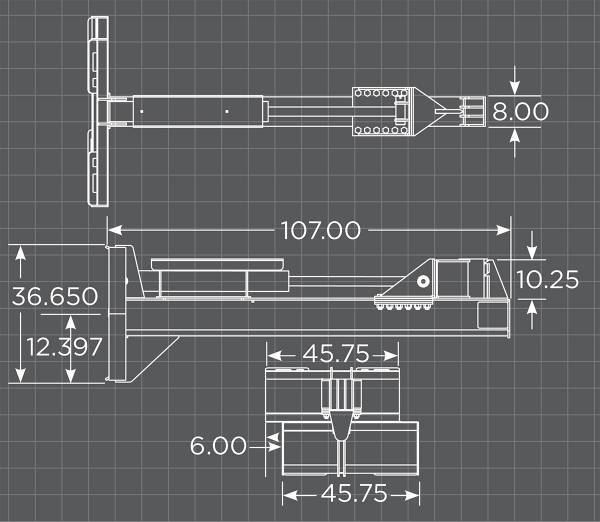

Dimensions
